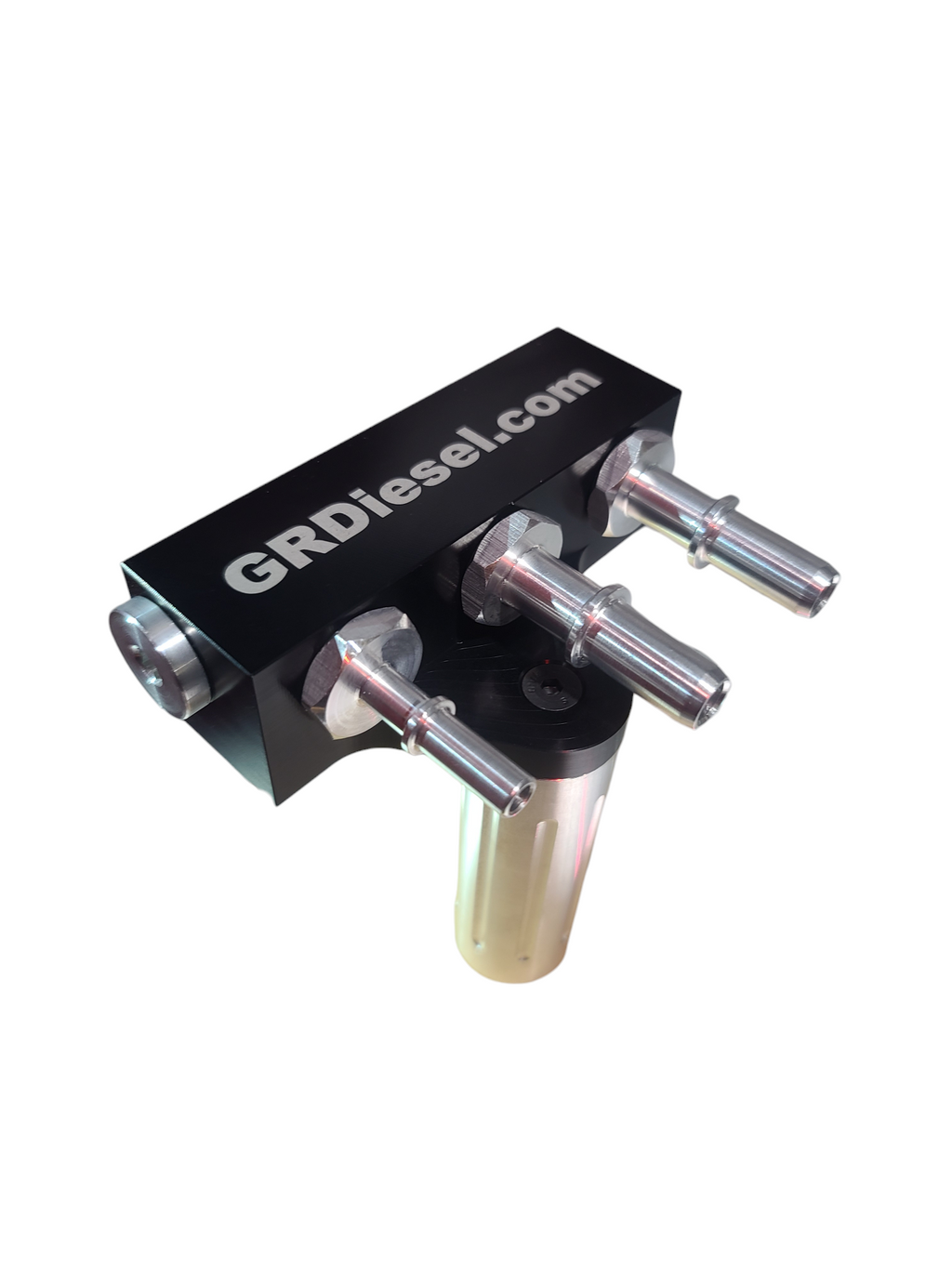

If your 6.7 Powerstroke is equipped with an aftermarket fuel system or upgraded filtration setup, eliminating the factory engine-mounted fuel filter is an essential upgrade. Our Engine Mounted Fuel Filter Bypass Block is engineered as a direct bolt-on replacement, providing improved reliability, cleaner fuel system routing, and additional versatility for custom fuel system configurations.
Eliminates the Factory Engine-Mounted Fuel Filter
Removes the factory plastic fuel filter housing and bracket, reducing unnecessary restrictions in aftermarket fuel systems while simplifying the engine bay.
Improves Reliability
The factory plastic engine-mounted fuel filter housing is known to become brittle over time and can crack under pressure, potentially allowing diesel fuel to spray onto hot engine components. Replacing it with our precision-machined bypass block helps eliminate this common failure point.
Direct Bolt-On Installation
Designed as a true direct replacement for the OEM assembly with no fuel line modifications required. Installation utilizes the factory fuel lines for a clean, straightforward upgrade.
Leak-Free Sealing
All ports, fittings, and the auxiliary port plug utilize O-ring Boss (ORB) threads, providing a superior seal compared to pipe-thread fittings and ensuring long-term leak-free performance.
Integrated Auxiliary 8AN Port
Features an additional -8AN ORB port that can be used for:
Auxiliary fuel system plumbing
Fuel pressure testing and diagnostics
Auxiliary fuel heater installation
Future fuel system expansion
Complete Installation Kit
Includes all required fittings and plugs for both factory fuel system configurations:
2011–2016: 2-line fuel systems
2017–2023: 3-line fuel systems
Ford 6.7 Powerstroke Diesel
2011–2023
Part Number: GRD67PS3005
Compatible with aftermarket fuel systems, upgraded filtration systems, custom fuel plumbing, and performance diesel builds.
